PTK102 Industrial Intelligent Temperature Switch
Fully digitized, switch movement value adjustable in full range
溫度預設開關點和延滯切換輸出
4-Bit LED shows current temperature, no error in display value
控制點可在零點和滿點之間現場隨意設定
Switching rate, 300 times per second.
兩路開關量輸出(NPN/PNP繼電器),帶載能力1.2A/3A

Overview

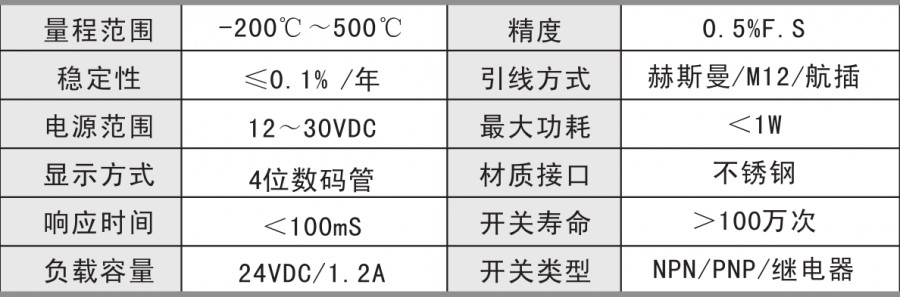

Specification

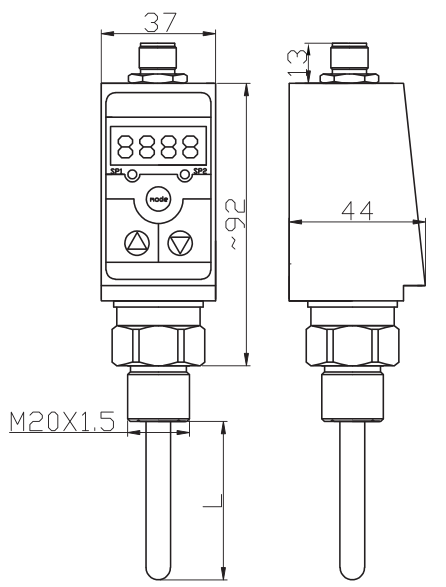

Structure

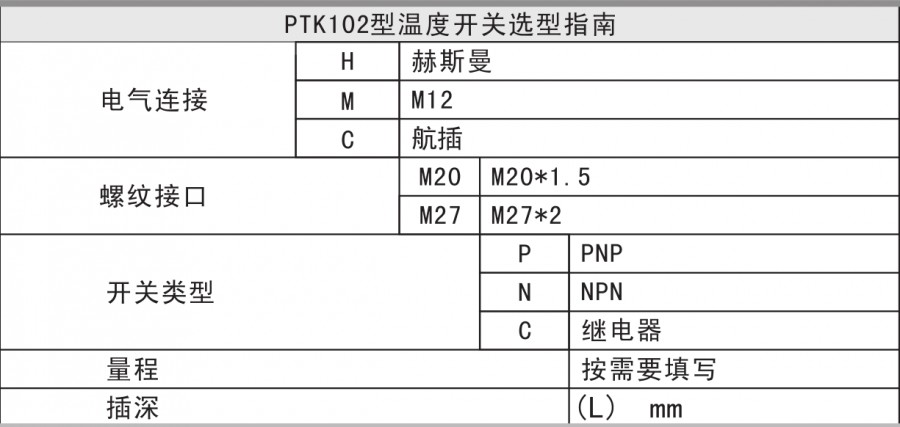

Model Selection

The PTK102 smart digital temperature switch is an intelligent digital temperature measurement and control product that integrates temperature measurement, display, output, and control. Stainless steel connector, high precision PT100, full digital circuit board composition, visual display, simple operation, safe and reliable, switch point site settings. It is widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries to measure and control the temperature of the fluid medium.
